Medical and team tent

With its straight tent walls, the latest medical tent from GYBE® combines the opportunity for efficient use of space with the practical advantages of pneumatic rapid deployment tents.

REQUEST NOW

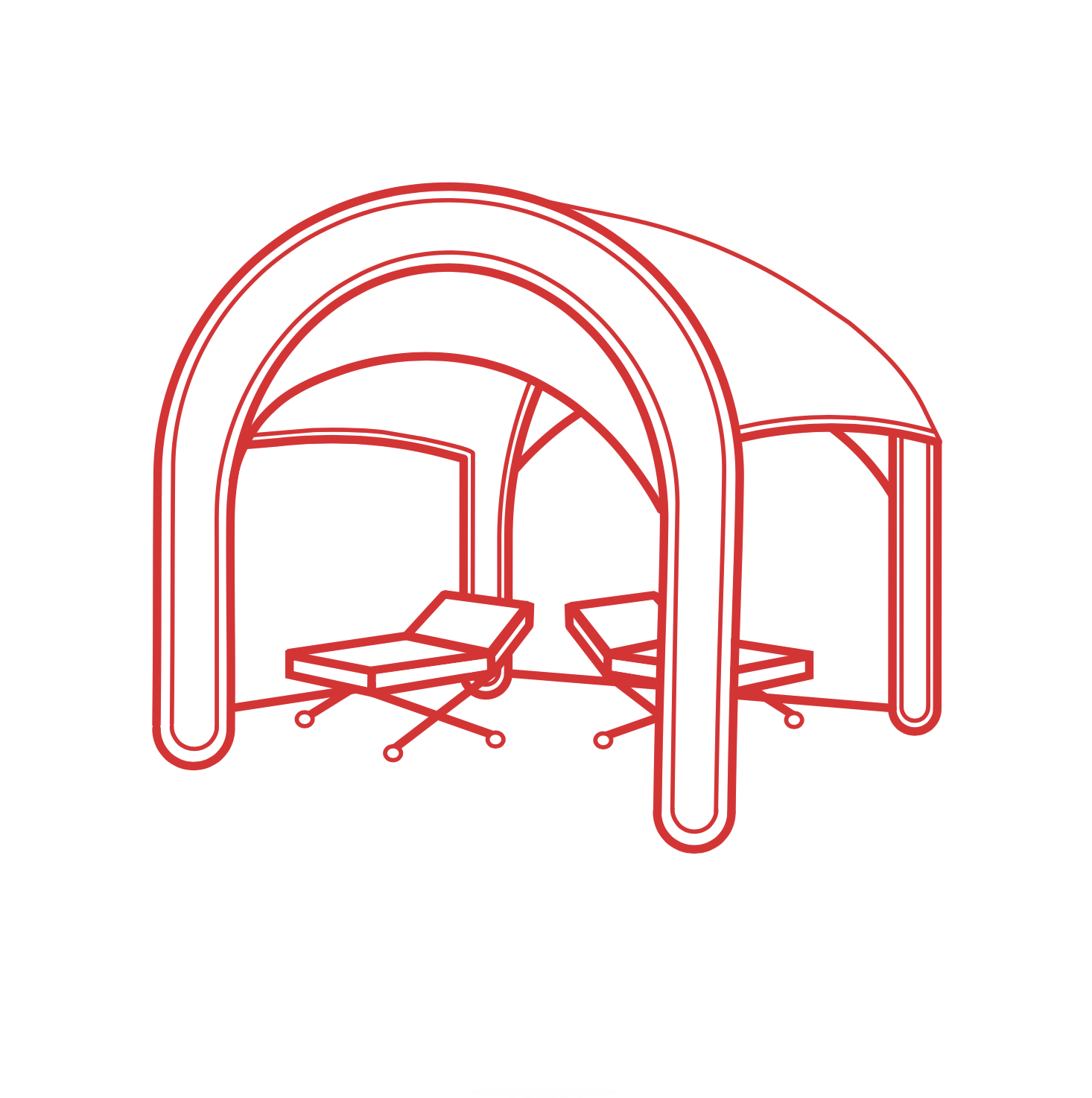

Efficient use of space

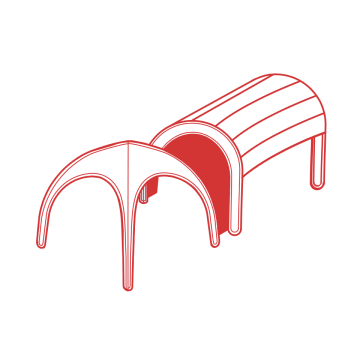

Rapid deployment tent compatible

Fully customizable

Small pack size

Lightweight

Quick setup

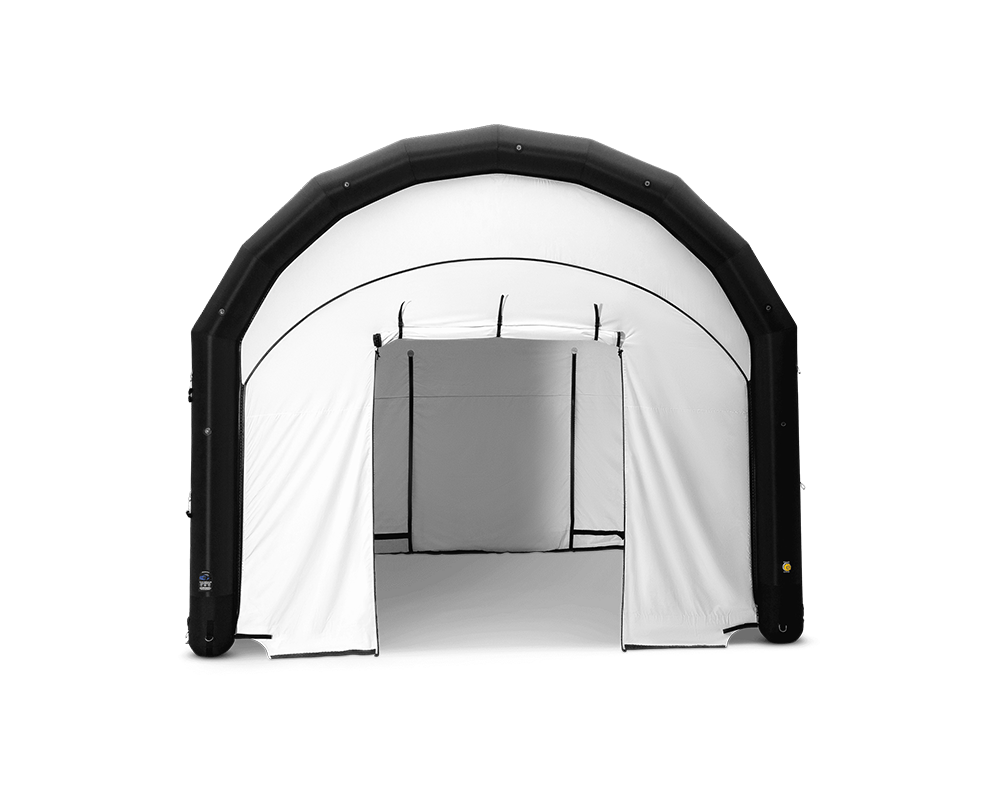

Inflatable black-and-white portable tent with open front and gray interior panels

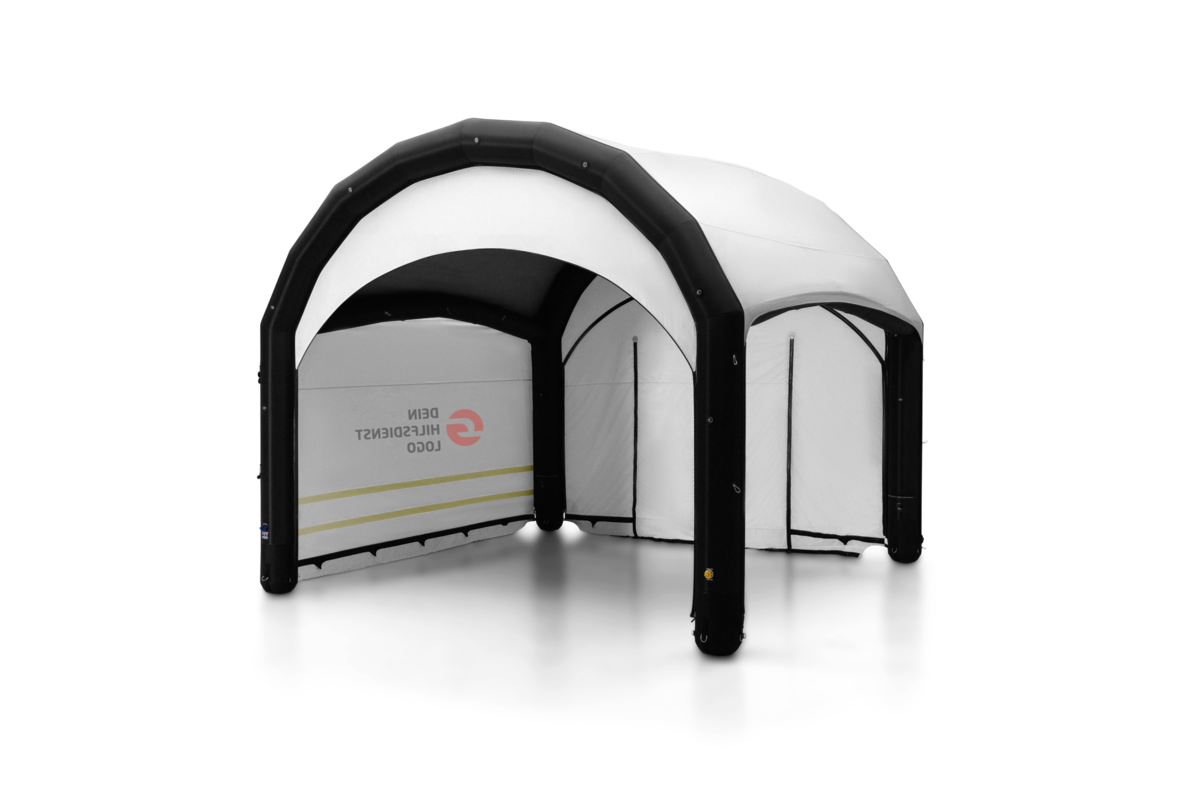

Black-and-white inflatable shelter tent with arched roof and open side panels

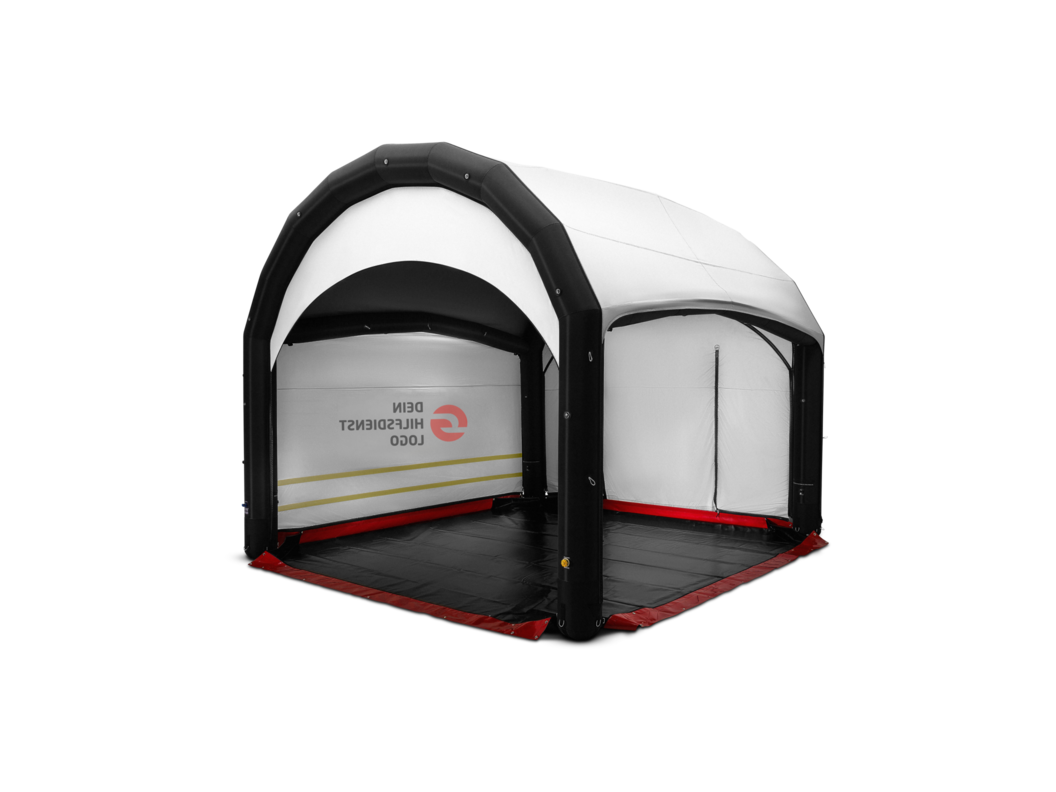

Portable black and white inflatable shelter with open front entrance and red base trim

GYBE® Medical Tent "Emergency"

INDIVIDUAL MEDICAL & CREW TENT

GYBE® Emergency Medical Tent

Years of production and customer experience with the rapid deployment tent have enabled the development of the inflatable medical tent, a deployment tent that primarily distinguishes itself from the rapid deployment tent through its practical design, while retaining its fundamental attributes. The tent is made of flame-retardant materials, the synthetic fibers of which are certified according to fire protection class 1 (B1), and it features water-repellent properties (ISO 4920, grade 5).

	TRO	EMERGENCY	FIRE BRIGADE
Roof	Navy 2767 C	Grey 422 C	Black
Inflatable	Black	Black	Black
Sidepanel/Fusion	Navy 2767 C	White	Red 200 C

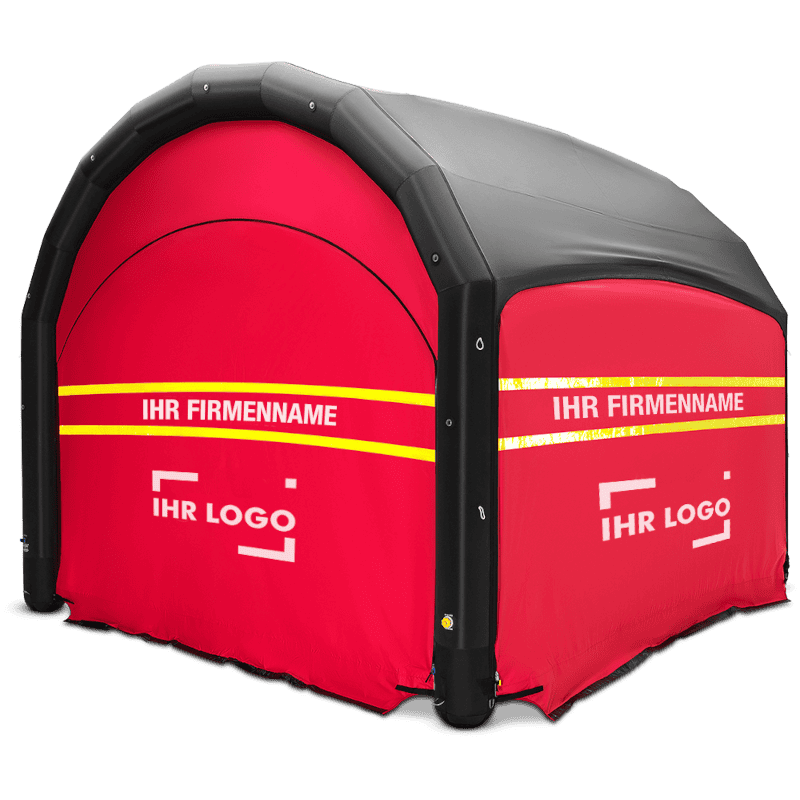

The emergency version of the medical and personnel tent is automatically equipped with two inlet valves. One is for inflation with electric pumps, and the other has a quick-connect fitting for inflation with compressors or compressed air cylinders. The emergency set is distinguished by the fact that the tent is printed with predefined markings on the front, back, and side walls, in the appropriate design for the respective emergency service or fire department, depending on the customer.

The Individual Set differs from the Emergency Set in that the design is completely customizable. In addition to freely choosing the material colors (from a predefined color range) for the individual tent components (roof, support structure, top panel, front, back, and side walls), the front, back, and side wall variations can also be individually selected. Printing crests, additional lettering, or other logos on the roof and side panels is also possible.

Medical tent with a streamlined tent shape for even more possible uses

The pneumatic GYBE® medical and crew tent, with a footprint of approximately 14 m², is ideal for providing first aid services or for use as a traditional crew tent. Its compact dimensions and light weight make it easy to transport and quick to set up. Thanks to its streamlined design, it offers ample interior space and can be expanded as needed by connecting additional tents.

REQUEST NOW

EXTENSIONS

TENT CONNECTION

Exploded view of modular arched metal structures and parts, shown in black-and-white line art

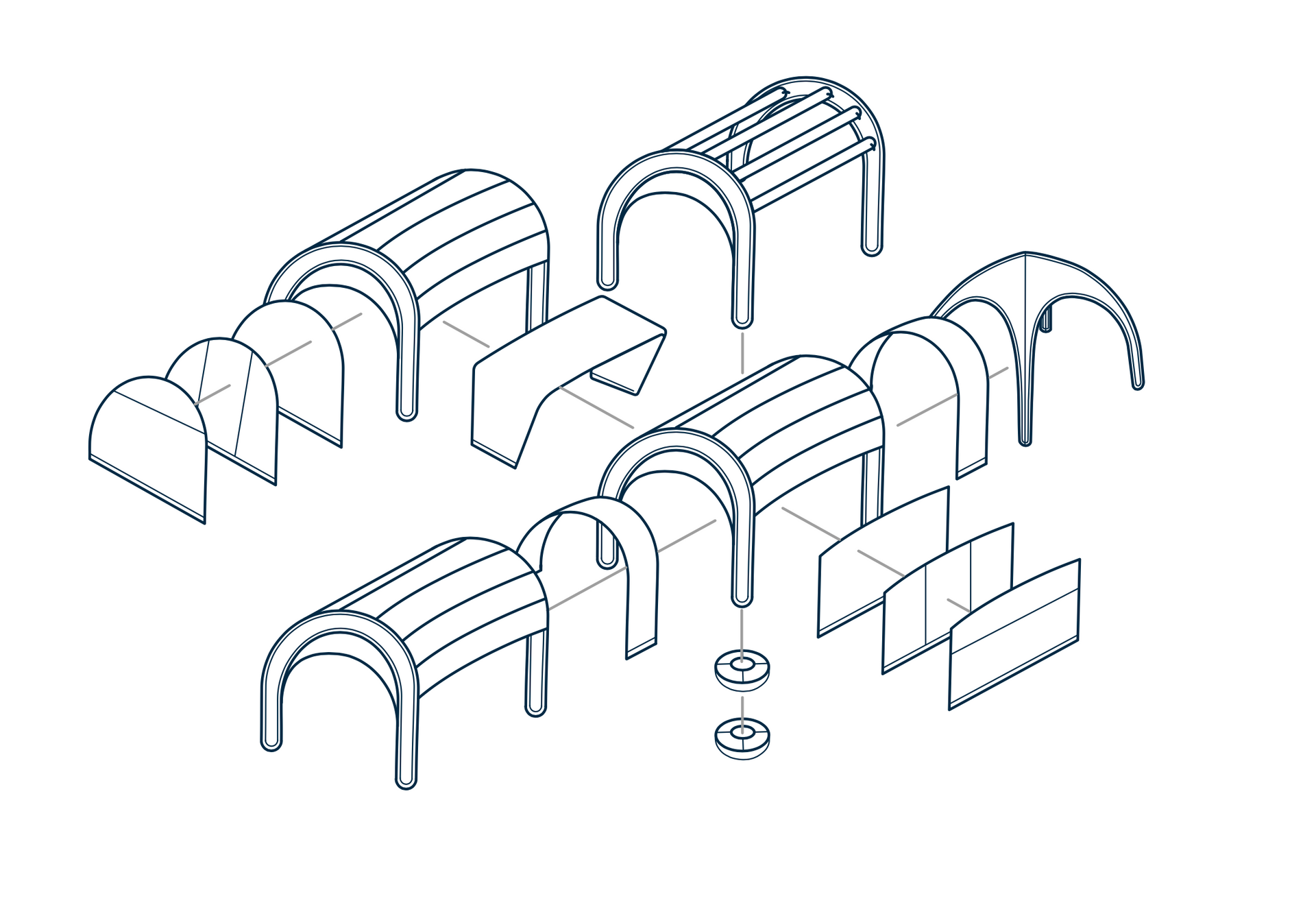

Extensions

The tent's modular design allows for rapid adaptation to the conditions of the next deployment, as well as to changing requirements over the long term. The GYBE® medical tent offers a range of expansion options, from groundsheets and work lights to additional ballast, ensuring optimal preparation for any operational scenario. Furthermore, the tent roof, as well as the front, rear, and side walls, can be removed and replaced as needed.

Tent connection

GYBE® has designed a medical and personnel tent for entirely new applications. Despite their very different designs, the straight-sided tent and the dome-shaped rapid deployment tents from GYBE® can be combined using connecting components. Both the 4x4 meter and 5x5 meter versions of the rapid deployment tent can be connected to the medical tent. Medical tents can also be extended with additional tents, either laterally or from the front.

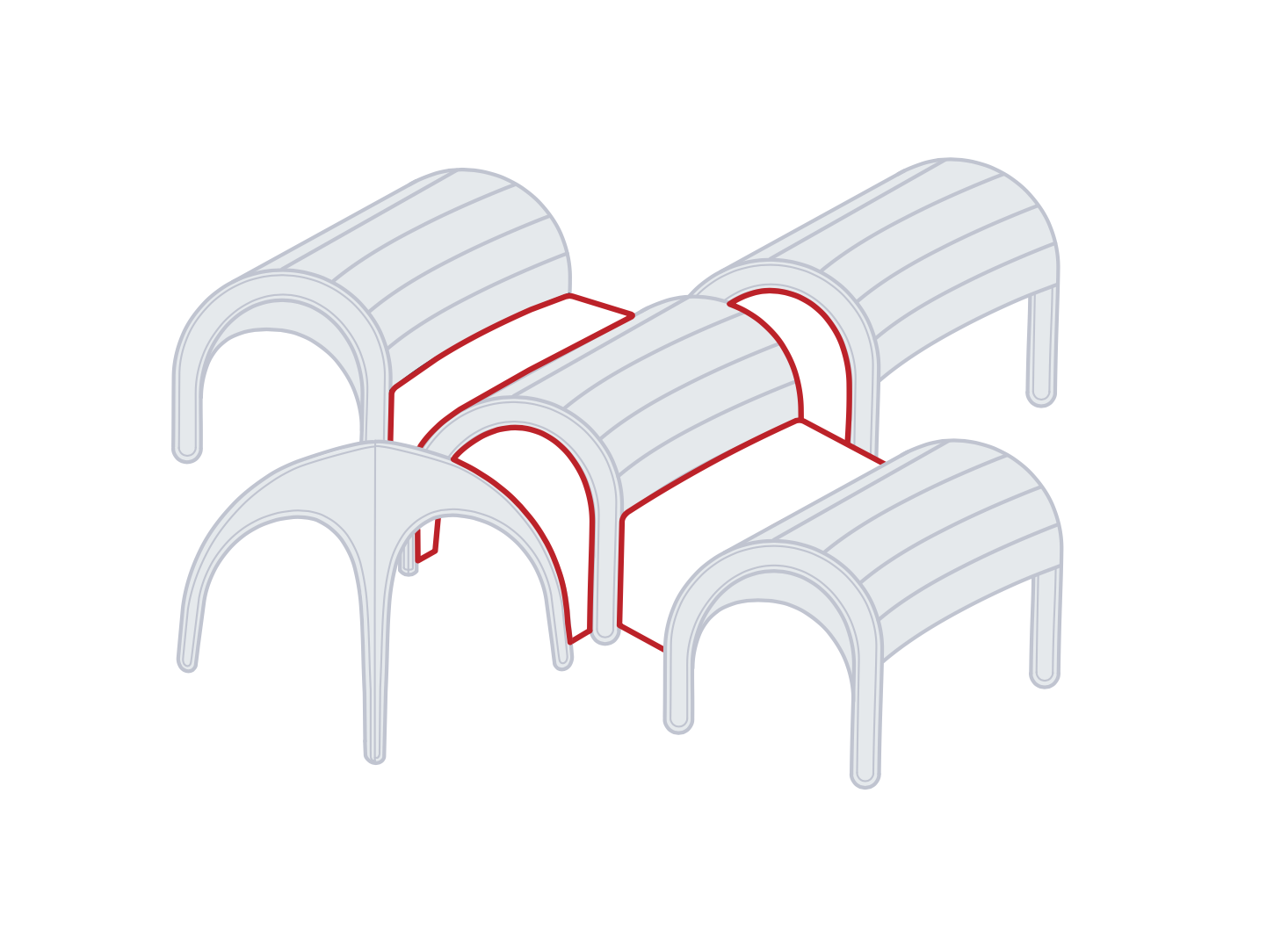

Three white arched modular shelters linked by red connectors, shown in a simple 3D diagram.

Technical diagram of a curved cable clamp with labeled layers: inner shell, vinyl, outer Dacron, and Tarpaulin.

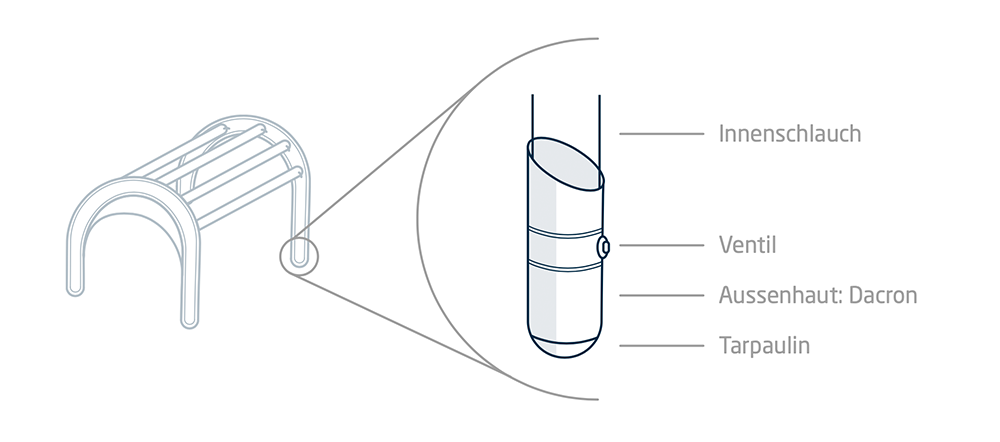

Structure of the supporting structure

The inflatable support structure of the first aid tent consists of a robust outer skin made of protective Dacron-polyester and an airtight inner tube made of a stretchable PU film. Tried and tested thousands of times on kiteboards on the water, the design has also proven itself for over 10 years through its use in GYBE® rapid deployment tents.

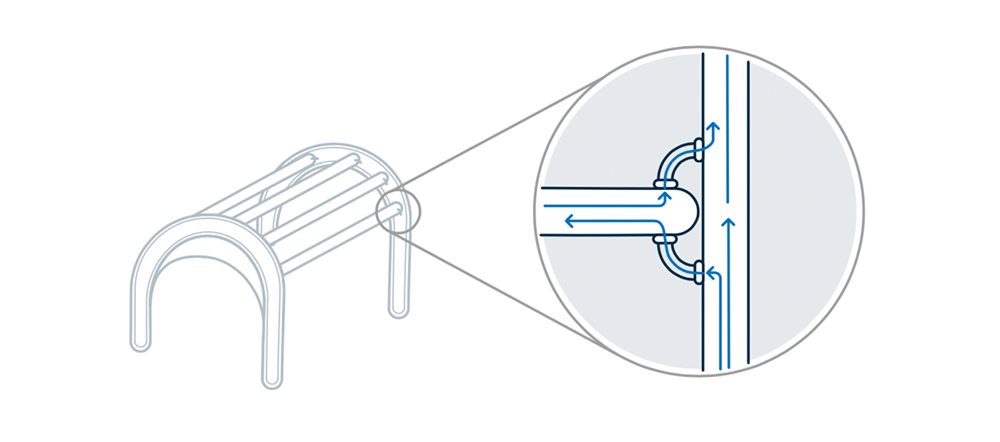

Diagram of a curved tube with a magnified cross-section showing blue airflow through a valve-like opening

The One-Pump System

The medical and personnel tent consists of seven air chambers inside. For ease of use, the air chambers are connected via bypass hoses, so the inner chambers do not need to be filled individually, but rather fill automatically one after the other. Inflation is therefore carried out via a single inlet valve and can be performed by just one person, even in hectic operational scenarios, without much thought.

Red circular video camera icon on white background

Schedule an online meeting

A personal digital meeting makes it easier for us to present our products to you within an agreed timeframe and to answer your questions in the best possible way.

Schedule a consultation appointment now; we look forward to speaking with you directly.

REQUEST AN APPOINTMENT

DIMENSIONS

SETUP TIME

SCOPE OF DELIVERY

Dimensions

Long

3,70 m

Width

3,85 m

Height

3,20 m

Base area

15,0 qm

Clearance height

2,30 m

Support structure diameter

0,3 m

Weight

34,0 kg

Dimensions

compressed air cylinder

4 min

230V electric pump

5 min

12V Akkupumpe

15 min

Scope of delivery

1 x Roof

1 x support structure

2 x closed side panels including reflective strips & standard printing

2 x front & back panels with roll-up door including reflective strips & standard printing

2 x Top Panel for front & back

1 x single-chamber system (filling with electric pump & compressed air)

1 x Dachwechseloption

1 x heating opening in side wall

4 x zippers for possible groundsheet attachment

2 x Sandbag Set (4 pieces each)

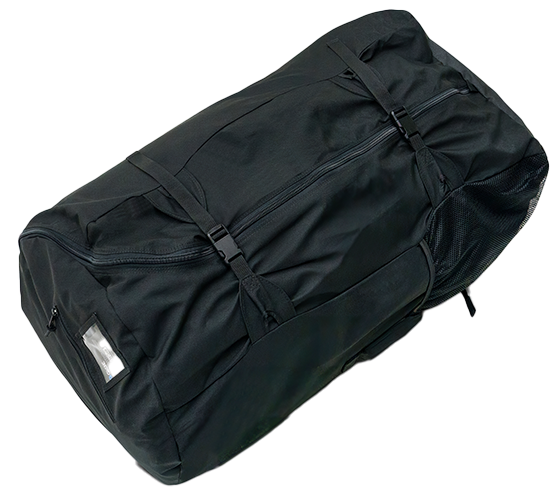

1 x transport bag

1 x Repair Set

1 x guy ropes

Two black-and-red inflatable fire station shelters, one marked “FEUERWEHR 112”

Ready for immediate use

The inflatable medical and personnel tent can be inflated using either electric pumps or compressed air, allowing for setup in as little as 4 minutes. Its straight tent walls quickly create valuable space for treatment couches, beds, equipment, or other uses.

Scope of delivery

The GYBE® medical and personnel tent comes complete with the tent itself in a transport bag, two side walls, two front/back walls, two top panels, and a heating vent in one of the side walls. Four standard sandbags and four additional top sandbags are also included for ballasting, along with guy ropes and a small repair kit.

TO THE SHOP

Print in its most perfect form - more brilliant than reality

To ensure stability, the rapid deployment tent consists of three separate air chambers. To eliminate the need to inflate these chambers sequentially, the GYBE® One-Pump System was developed. This system allows the tent to be set up within 4 minutes by supplying air through a central valve, which then distributes it evenly across the three chambers.
